Category: Product ID: 1647

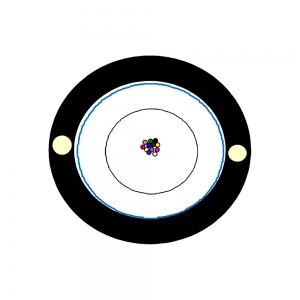

Cable Construction details
No.of Fibres in a TubeFor 2F Cable: 2 Fibres
For 4F Cable: 4 Fibres
For 6F Cable: 6 Fibres
For 8F Cable: 8 Fibres
For 12F Cable: 12 Fibres
Fibre ColourFor 2F Cable: Blue & Natural
For 4F Cable: Blue, Orange, Green & Natural
For 6F Cable: Blue, Orange, Green, Brown, Slate & Natural
For 8F Cable: Blue, Orange, Green, Brown, Slate, White, Red & Natural
For 12F Cable: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose & Natural
Loose TubePBTP Loose Tube Filled with Thixotropic Jelly
Moisture BarrierWater Swellable Tape
Rip cords1 no., Below Armour
ArmourCorrugated ECCS Tape
Strength member2 nos, Steel Rod Embedded in Sheath
Outer SheathHDPE Black Colour



Cable Mechanical Characteristics
Temperature Range [IEC 60794-1-2-F1]-20° to +70°C
Cable Bending Radius [IEC 60794-1-2-E11 A]20 x D, D = Cable Diameter
Repeated Bending [IEC 60794-1-2-E6]30 Cycle, r = 40 X D, 5 Kg Load, D = Cable Diameter
Tensile Force [IEC 60794-1-2-E1]1.1 x W (W=Weight of 1 km Cable), at 0.25 % Strain
Torsion Resistance [IEC 60794-1-2-E7]10 Cycle [± 180°] 10 Kg Weight, Length under Test-2 meters
Crush Resistance [IEC 60794-1-2-E3]2000 N [100 X 100 mm] for 60 sec
Impact Resistance [IEC 60794-1-2-E4]Height 0.5 meters, Weight = 5 Kg, 3 Nos
Water Penetration [IEC 60794-1-2-F5 B]1 Meter Water Head, 3 Meters Cable Sample, 24 Hours


Cable Physical Characteristics
Cable Outer Diameter8.2 ± 0.5 mmCable length per Drum For SM2000/4000 mtrs ± 10%
Nominal Cable Weight70 Kg/KmCable length per Drum For MM
Printing details
1000/2000 mtrs ± 10%
As per Spec / PO
