Description
Applications
Commscope Connectivity’s patchcord is designed to
provide interconnection solutions for
- Telecommunication Network
- CATV System
- Local Area Network
- Active / Passive devices
- FTTh Applications

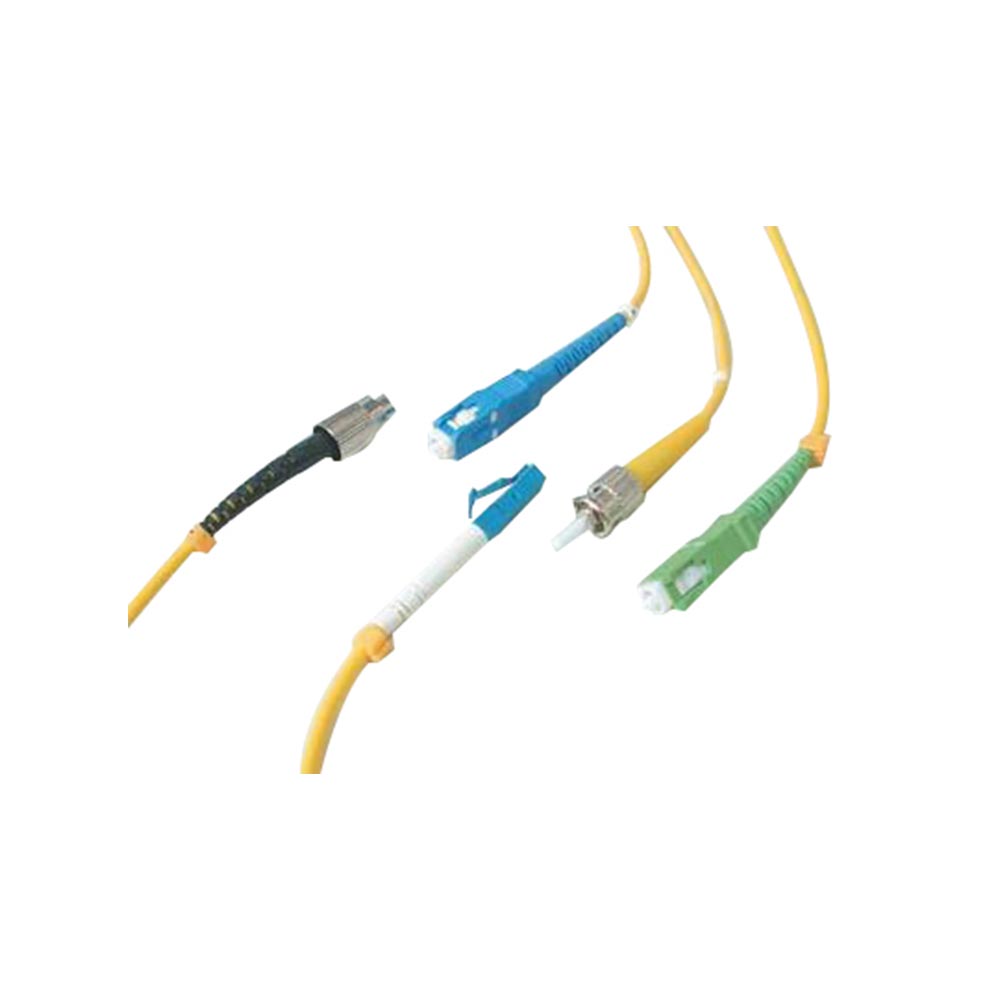

PATCHCORDS
Commscope Connectivity’s Patchcords are passive telecommunication components used for the interconnection of optical equipment to optical fiber cable. They are single fiber cables pre-assembled with a connector at both ends. The optical fiber patch cords are designed for use in telecommunications, CATV, data communications, and local area networks.
Versons Available
Commscope’s Patchcords are available in the following versions:
- Singlemode or Multimode
- Simplex or Duplex
- 900um, 2mm/3mm
- Unarmoured
- Connectors – SC, LC, ST, FC, MU, MTRJ, E2000, MPO etc
- Patchcords are available in all type of connector – PC, APC, UPC
- Cable options – PVC, OM1, OM2, OM3, LSZH
- Cable length – Customized lengths available
| Optical Performance | Singlemode | Multimode |
|---|---|---|
| Insertion Loss | ≤ 0.20 dB | ≤ 0.3dB |
| Return Loss | ≥ 55 dB (UPC) | ≥ 40 dB |
| Return Loss | ≥ 60 dB (APC) | ≥ 40 dB |
| Repeatability | ≤ 0.10 dB | |
| Durability | ≤ 0.20 dB typical change, 500 matings | |
| Operating Temperature | – 10 to + 55 °C | |
| Storage Temperature | 0 to + 60 °C | |
