Description
Key Features:
- 1 nm incremental wavelength settings
- Universal optical interface supports all 2.5 mm with option for 1.25 mm connectors
- Fiber Tracing – detecting optical light source tone(s) generated by SmartPocket V2 optical light sources
- Storage for over 1000 test results and PC download capability
- Bluetooth connectivity to the VIAVI Mobile Tech App
- 3-way powering – alkaline AA, NiMH AA rechargeable, AC power adapter
- 3-year recalibration period
Applications:
- Measuring optical power levels and link insertion loss for both single mode and multimode networks
- Network Build and Maintenance for
- Enterprise/LAN
- Access and Metro (LAN/WAN)
- FTTx (e.g. Home/Antenna)
- Standard and high-power level measurement
Products

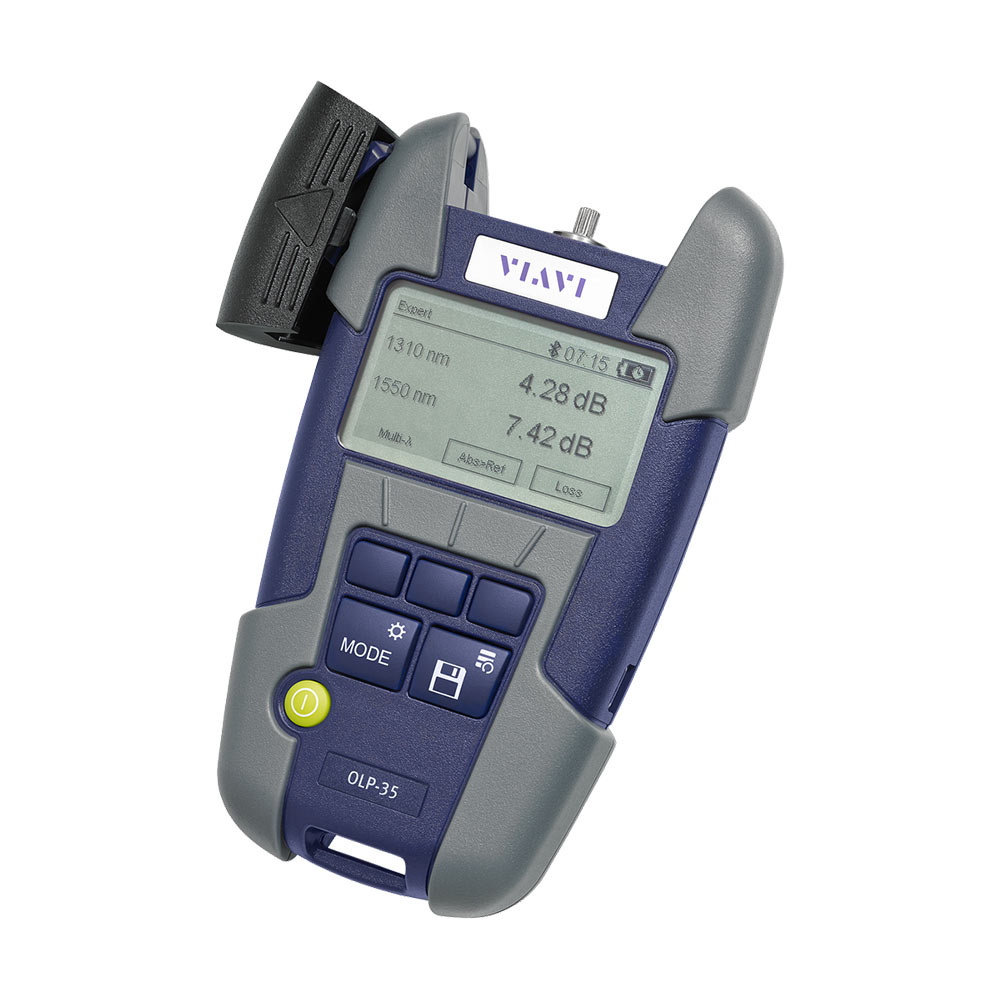

- The OLP-35V2 (InGaAs) is optimized for standard telecommunication networks and multimode or single mode applications

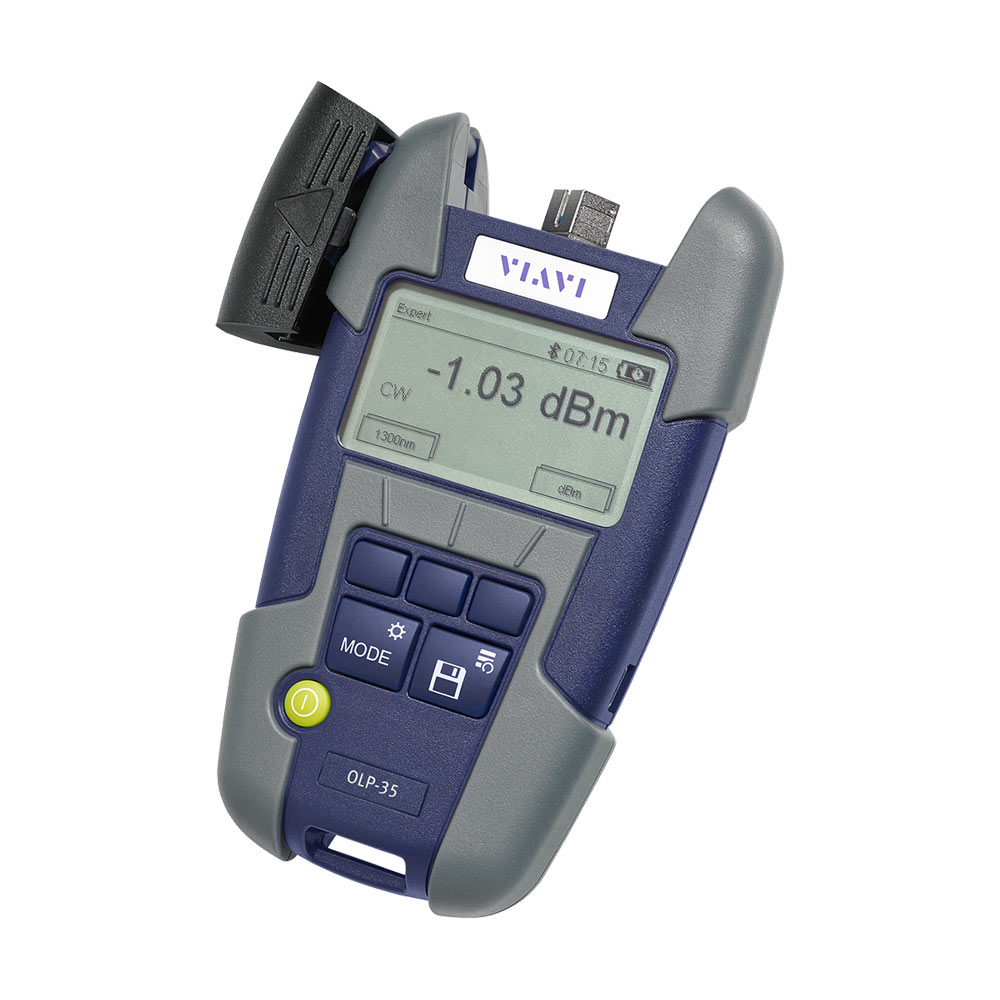

- The OLP-35SC (InGaAs) provides the same capabilities as the OLP-35V2 and comes with a fixed SC adapter
- The OLP-38V2 (filtered InGaAs) is a higher-power version (up to +26 dBm) for CATV HFC (with analogue RF transmission) or amplified DWDM systems applications
