Description
Applications
- Used for fiber splicing and patchcord management.
- Used for distribution of fibers.
- Applicable to BTS sites of Telecom Network.
- Applicable for indoor applications.

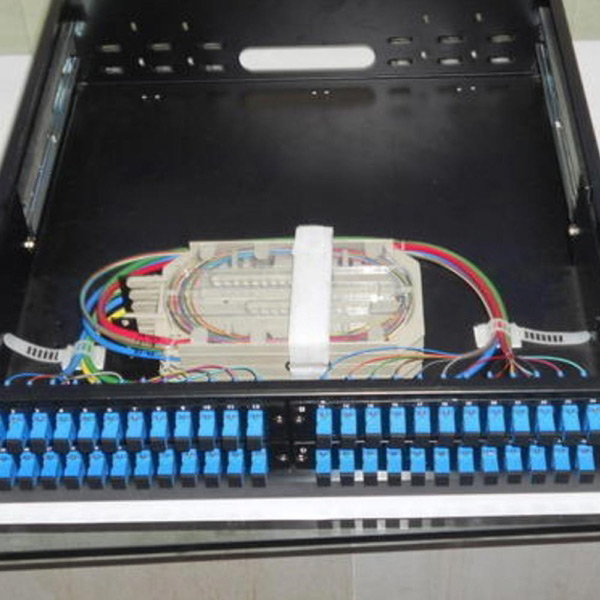

FMS 19” RACK MOUNT
TE’s FMS is a CRCA powder-coated shelf. It has provisions for Individual fiber splicing and distribution. It is a complete rodent-proof shelf. It has the unique feature of storing the extra-length loose tubes of the incoming fibers. It is suitable for front mounting in 19″ racks.
Specifications
| Parameters | Value | |||||
|---|---|---|---|---|---|---|
| 1U | 2U | 4U | ||||
| Dimension (H x W x D) | 1U x 484 x 280 | 2U x 484 x 270 | 4U x 484 x 270 | |||
| Adaptor Types | Capacity (Max) | |||||
| Simplex | Duplex | Simplex | Duplex | Simplex | Duplex | |
| SC | 24 | 48 | 48 | 96 | 96 | 192 |
| FC | 24 | 48 | 96 | |||
| LC | 24 | 48 | 48 | 96 | 96 | 192 |
| No of Cable Entries & Exit | 2 | 2 | 2 | |||
| Access | Front with Telescopic slides | Front with Telescopic slides | Front with Telescopic slides | |||
| Cable Entry | From Rear | From Rear | From Rear | |||
| Loose Tube Storage Space | Yes | Yes | Yes | |||
| Cable Dia | 10 to 18 mm | 10 to 18 mm | 10 to 18 mm | |||
| No of Pigtails | 24 | 48 | 48 | 96 | 96 | 192 |
| Pigtail Length | 1.5 mtr | 1.5 mtr | 1.5 mtr | |||
| Pigtail type | Single Mode | Single Mode | Single Mode | |||
| No of Splice Trays (Max) | 2 | 4 | 8 | |||
| Splice / Tray | 12 | 24 | 12 | 24 | 12 | 24 |
