Description
Applications
- Used for splicing & distribution
- Used for straight-through and branching applications
- Applicable for Aerial as well as underground & wall mounting applications
- Applicable for unarmoured & armored cables

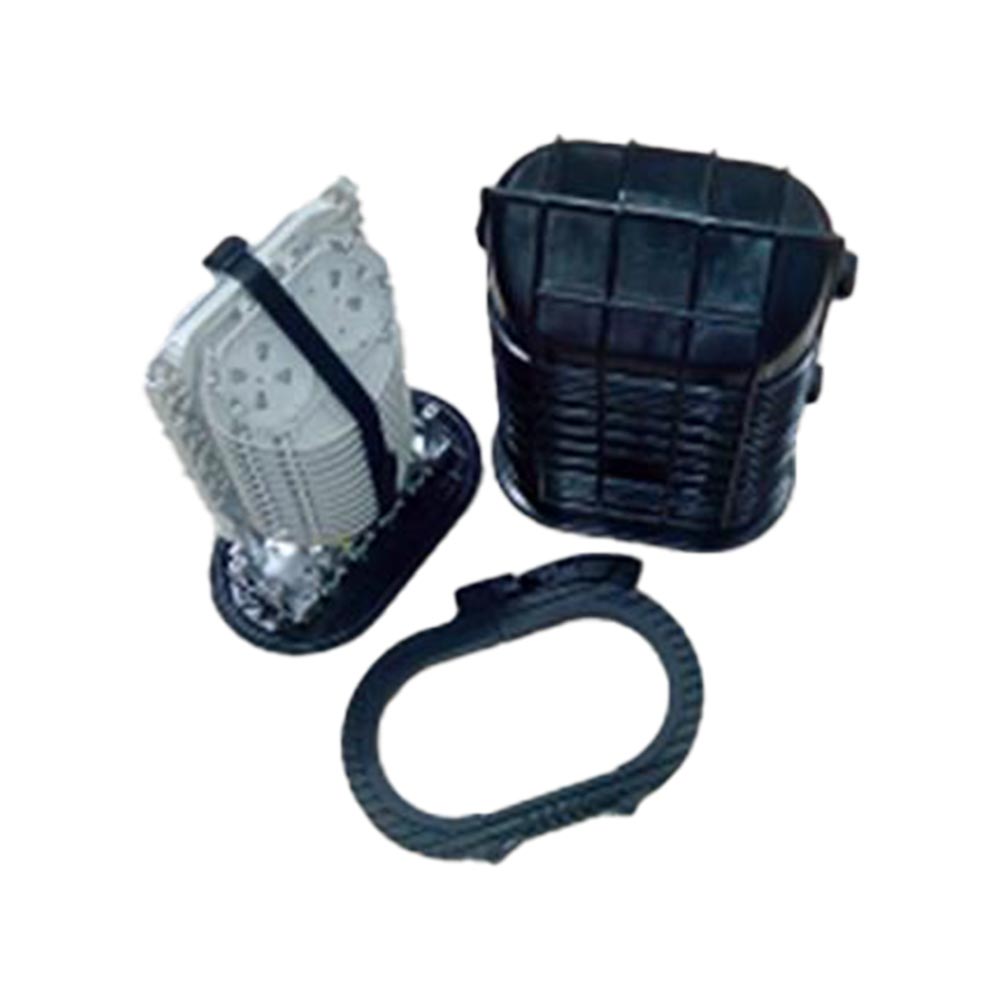

FOJC – 400
TE’s Flat Closure is compact, lightweight and its construction is robust and rigid having a strength for all conditions of Storage, Transport, Installation, and Operation. Its design and construction allow fusion splicing, splitting, and storage of tubes and fibers. This closure is designed for use with all cable constructions. With its compact design and ease of operation, this is the design to look forward to. It can be used for straight joint, branch joint, midspan of the optical cables, splitting, and distribution connectivity in an FTTx network.
Features & Benefits
Features
- Mechanical
- Watertight protection
- Zero additional loss
- Cable & Strength member holding
- No specialized tools needed
- Resistance to UV and temperature fluctuation
- Bend controls in Splicing tray
- Proven tray splicing concept
- Pressure Valve
- Rugged construction
- Easily Re-Enterable Design
- Minimal Training, No special tools needed
- Splicing tray lid
- Transport tubes for fibers
- Earthing
Benefits
- No need for added tools for cable installation
- Can be deployed in all environments: buried, underground and aerial
- No additional loss when optic fibers are routed in the splice trays during installation and maintenance
- Providers better holding of cable
- Ensures bend radius protection and solutions for all types of fibers
- Provides provision for testing the sealing of ports after complete installation.
- long term reliability
- Economical and Future-ready
- Cost savings, Easy installation
- Protects the spliced fibers from coming out of the trays
- Prevents fiber breakage at the tray entry during installation & maintenance
- Safe for handling in the field
Specifications
| SL. No | Parameters | Unit | Particulars |
|---|---|---|---|
| 1 | Dimension (L x W x D) | mm | 395 x 282 x 212 |
| 2 | Weight | Kg | < 7 Kg |
| 3 | Cable Sealing | Mechanical | |
| 4 | Construction Material | ||
| Dome | Poly-propylene Co-polymer | ||
| Base | Poly-propylene Co-polymer | ||
| Tray | ABS | ||
| O Ring | Rubber | ||
| Clamp | Glass-filled Nylon | ||
| 5 | Type | Butt Type | |
| 6 | Round Port Entry for distribution cable (Max) | Nos | 10 |
| 7 | Oval port entry for cable (Max) | Nos | 1 |
| 8 | Cable Diameter Supported | mm | 6 – 12.5 mm (through rubber seals)* |
| 9 | Total no. of Optical splices | Nos | 96 for Loose tube fiber |
| 10 | Degree of protection | IP – 68 | |
| 11 | Maximum no. of splice trays | Nos | 8 |
| 12 | No. of splice per tray | Nos | 12 loose tube fiber |
| 13 | No of Splitter Trays | Nos | 4 |
| 14 | No of splitters per tray | Nos | 1 |
| 15 | Splitter Ratios | 1:8 or 2:8 | |
| 16 | Fiber length storage in the splice tray | Mtr | 1.5 |
| 17 | Operating Temperature | oC | Up to 65 |
| 18 | Atmospheric pressure | Kpa | 70 – 106 |
