Description
Product Classification
- Regional Availability: EMEA
- Product Type: Single-ended, round fiber closure
- Product Brand: FIST™
- Product Series: FIST-GCO2
GCO

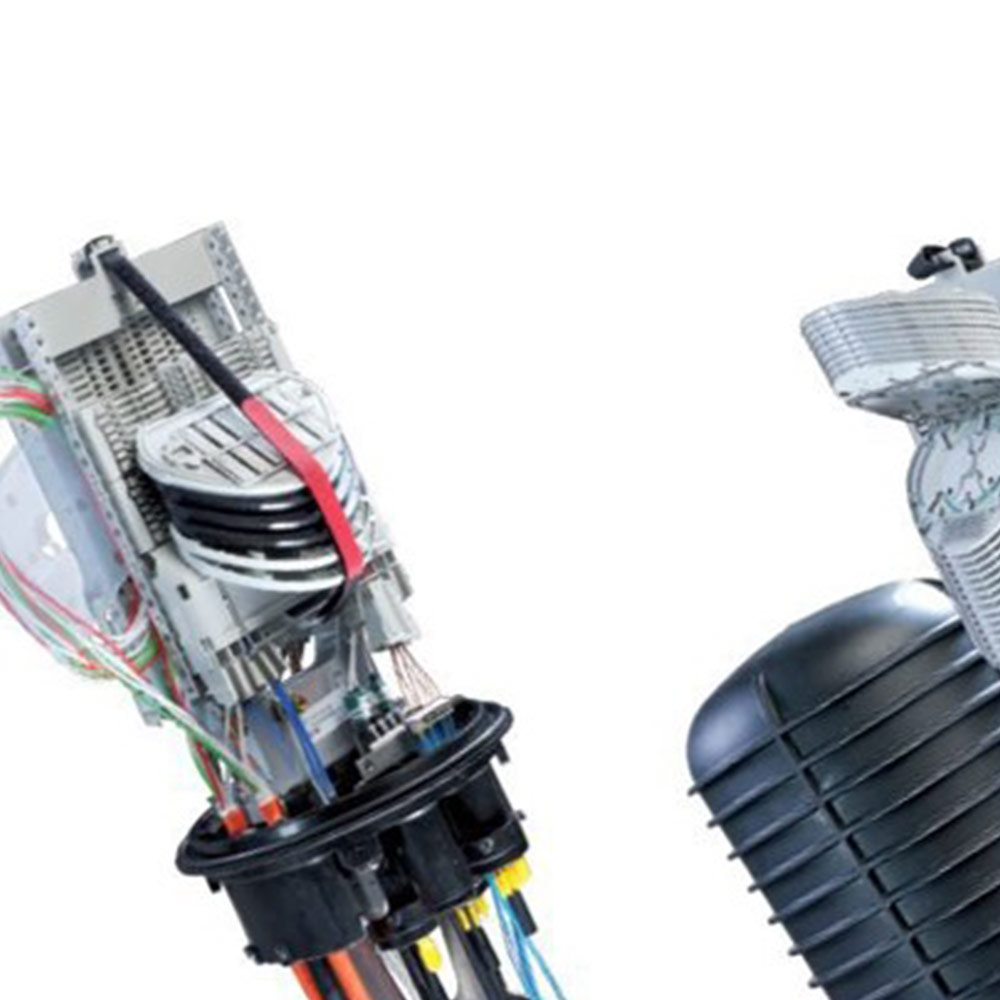

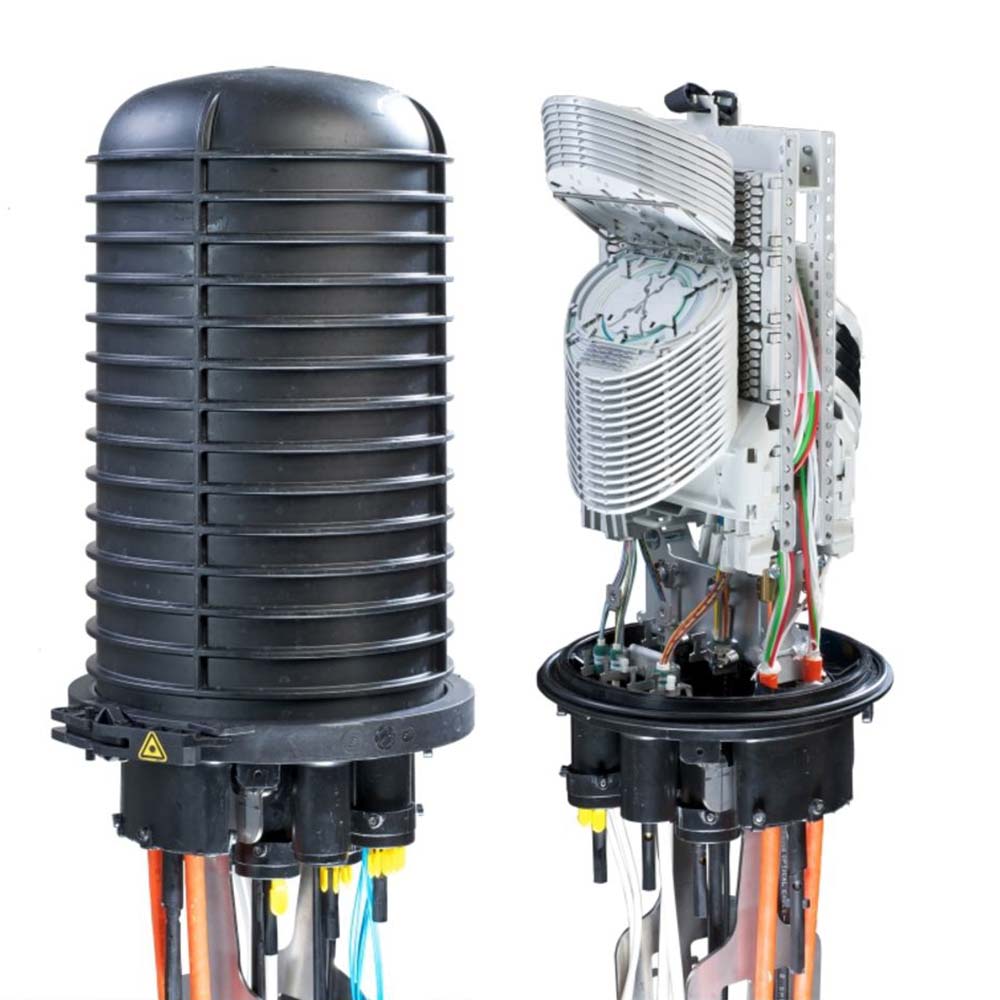

FIST™ GC02 Fiber Optic Splice Closure, Heat Shrink Cable sealing,
size BD, no pre-installed fiber trays, 6 ports
- Single-ended, O-ring sealed dome closure for splicing feeder and distribution cables.
- Compatible with most common cable types: e.g. loose tube, central core, ribbon fiber.
- Universal mounting system (UMS) profiles provide the foundation for mounting combinations
of FIST splice trays. - Closure can be used in the aerial, pedestal, and underground (up to 5 meters) environments.
- Compatible with CommScope’s CWDM modules and optical splitter trays.
Specifications
General Specifications
- Cable Entry Drop Port Style: Round
- Cable Entry Main Port Style: Oval
- Cable Ports, quantity: 7
- Cable Sealing Type: Gel kit (optional) | Heat shrink
- Closure Sealing Type: Dome-to-base clamp with O-ring
- Closure Style: Single-ended
- Color: Black
- Mounting: Pole | Strand | Wall
- Network Area Type: Distribution
- Splice Tray Included, quantity: 0
- Splicing Capacity, Mass Fusion, maximum: 336
- Splicing Capacity, Single Fusion, maximum: 480
- Splicing Capacity, Single Splice, 12 fibers, maximum: 480
- Splicing Capacity, Single Splice, 2 fibers, maximum: 160
- Splicing Type, Supported: Mass fusion | Single fusion
Material Specifications
- Material Type: Impact-resistant polymer
Environmental Specifications
- Environmental Space: Below ground | Buried
- Qualification Standards: IEC 61300, 5 m waterhead
Dimensions
- Length: 566 mm | 22.283 in
- Cable Entry Drop Port Diameter: 30 mm | 1.181 in
- Diameter: 247 mm | 9.724 in
- Diameter, with clamp: 285 mm | 11.22 in
- Main Cable Diameter, maximum: 25 mm | 0.984 in
- Cable Entry Main Port Dimensions: 30 mm x 82 mm (1.18 in x 3.23 in)
Packaging and Weights
- Packaging quantity: 1
- Packaging Type: Box | Carton
- Weight, net: 4.4 kg | 9.7 lb
