Description
Applications
- Used for storing splicing.
- Used for straight through and branching applications.
- Applicable for Aerial as well asunderground & wall mounting applications.

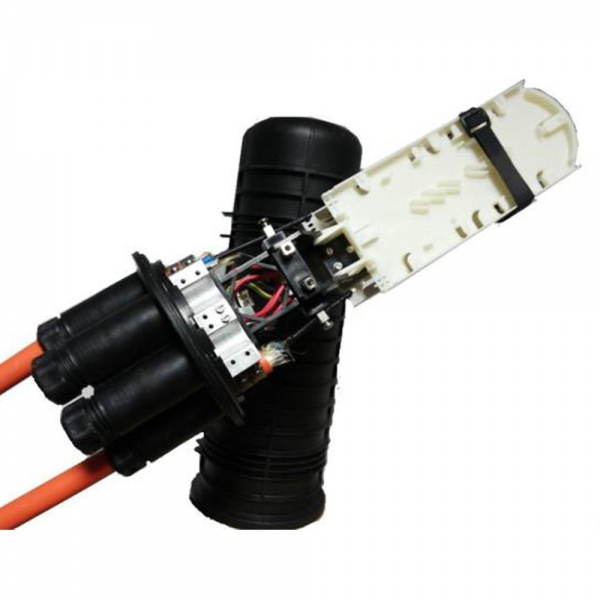

RAYMECH – MECHANICAL SEALING
TE’s Ray-mech is especially designed for installation of cables without any source of heat. It is used to house optical fiber
splices and cables in secured condition. This closure can be designed for use with all cable constructions. With it’s compact design and ease of operation, this is the design to look forward. This closure has provision of use of both loose tube as well as ribbon fiber.
Features & Benefits
Features
- Mechanical Sealing
- Water tight protection (IP68 compliant)
- Zero Additional Loss
- Cable & strength member holding
- Aluminum holder
- No specialized tools needed
- Resistance to UV and temperature fluctuation
- Proven tray splicing concept
- Bend controls in Splicing tray
- Rugged construction
- Easily Re-Enterable Design
- Minimal Training, No specialize tools needed
- Splicing tray lid
- Transport tubes for fibers
Benefits
- No need of added tools for cable installation
- Can be deployed in all environments: buried, underground and aerial
- No additional loss when optic fibers are routed in the splice trays during installation and maintenance
- Provides better holding of cable
- Automatic grounding of cables
- Easy installation
- Can be deployed in all environments: buried, underground and aerial
- Ensures bend radius protection and solutions for all types of fibers
- Guides and protects the pigtail cable and ensures controlled cable bending
- long term reliability
- Economical and Future ready
- Cost savings, Easy installation
- Protects the splice fibers from coming out of the trays
- Prevents fiber breakage at the tray entry during installation & maintenance
Specifications
| Sr. No | Parameters | Unit | Unit |
|---|---|---|---|
| 1 | Dimension (L x D) | mm | 540 x 180 |
| 2 | Weight | Kg | < 3.5 Kg |
| 3 | Cable Sealing | Mechanical | |
| 4 | Construction Material | ||
| Dome | Poly-propylene Co-polymer | ||
| Base | Poly-propylene Co-polymer | ||
| Tray | ABS | ||
| O Ring | Neoprene Rubber | ||
| Clamp | Glass Filled Nylon | ||
| 5 | Type | Butt Type | |
| 6 | Round Port Entry for cable(Max) | Nos | 4 |
| 7 | Oval port entry for cable (Max) | Nos | 1 |
| 8 | Cable Diameter Supported | mm | 8 – 20 mm (through different rubber seals) |
| 9 | Total no. of Optical splices | Nos | Max 288 for Ribbon, 144 for Loose tube fiber |
| 10 | Degree of protection | IP – 68 | |
| 11 | Maximum no. of cable entries | Nos | 6 |
| 12 | Maximum no. of splice trays | Nos | 6 |
| 13 | No. of splice per tray | Nos | 12 / 24 for loose tube fiber & 48 for Ribbon Fiber |
| 14 | Operating Temperature | 0C | Upto 65 |
| 15 | Atmospheric pressure | Kpa | 70 – 106 |
